Technical Specifications
Parameter | Specification |
Product Model | JYL-WLxxxx |
RFID Standard | EPC Class 1 Gen 2 / ISO18000-6C |
Frequency | Global UHF 860MHz - 960MHz |
IC / Chip Options | NXP UCODE 8 / UCODE 9, Impinj Monza R6-P / M730 |
Material | High-Quality Polyester Woven Fabric / Textile Label |
Dimensions | Custom Size Available ( 70x15mm / 60x20mm) |
Read Range | Up to 5 - 7 Meters (Depending on reader and environment) |
Wash Cycles | Guaranteed ≥ 200 Cycles |
Customization | Custom Logo Weaving, Laser QR Code, Pre-encoding |
Key Features

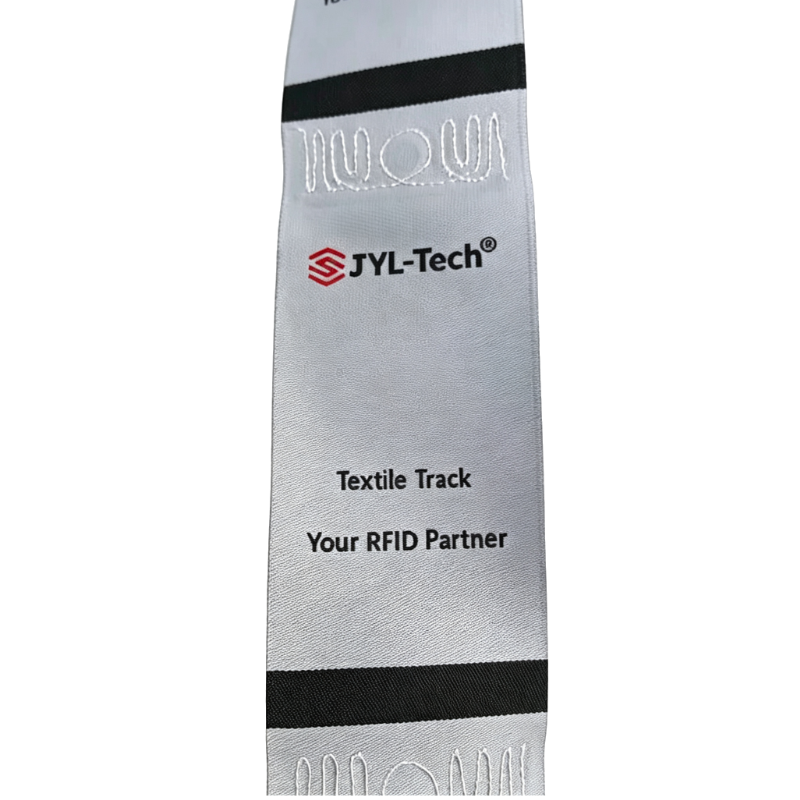

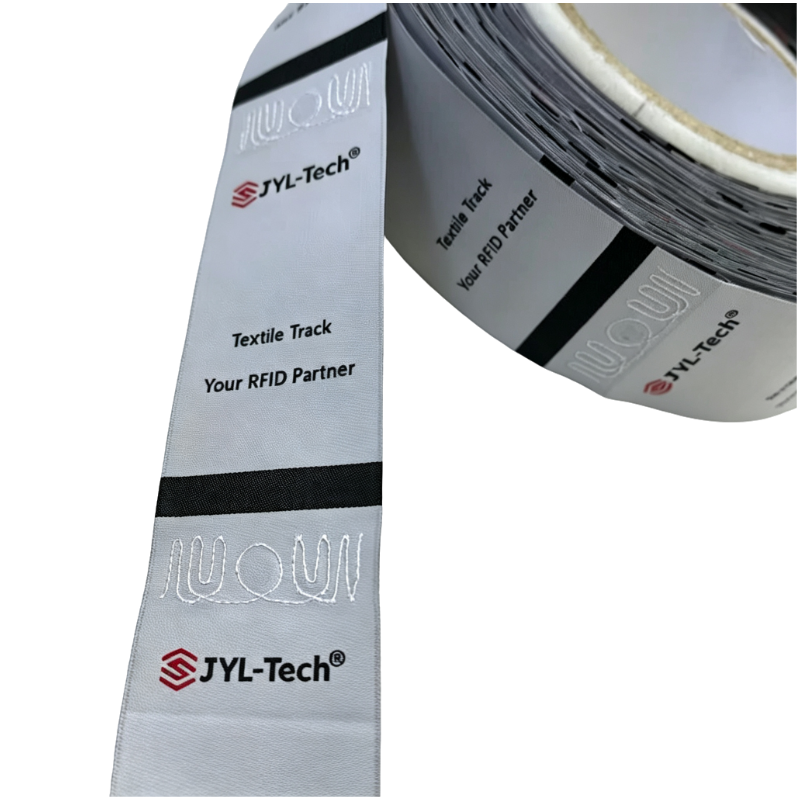

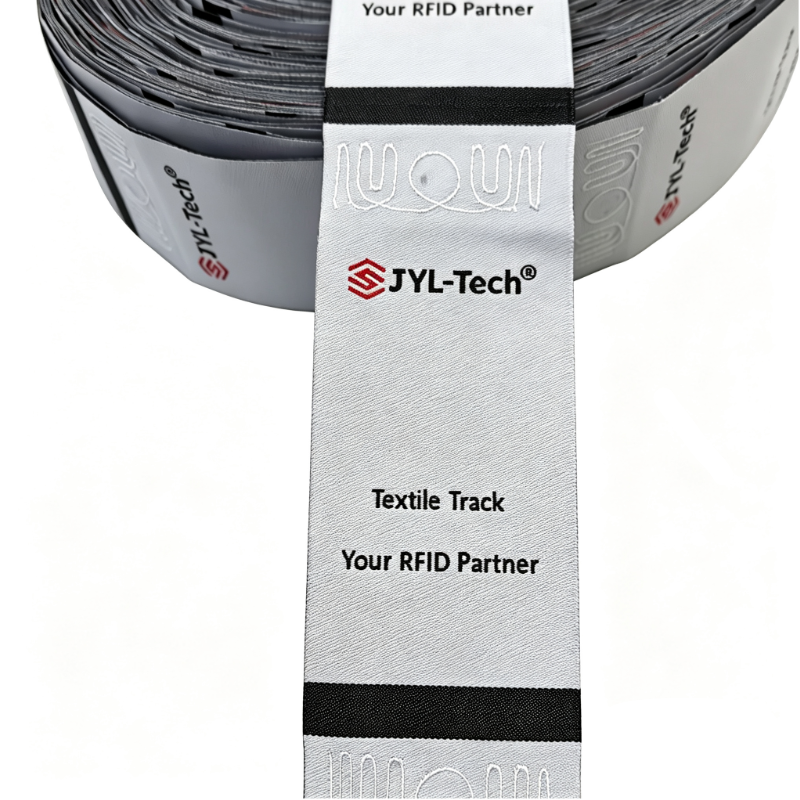

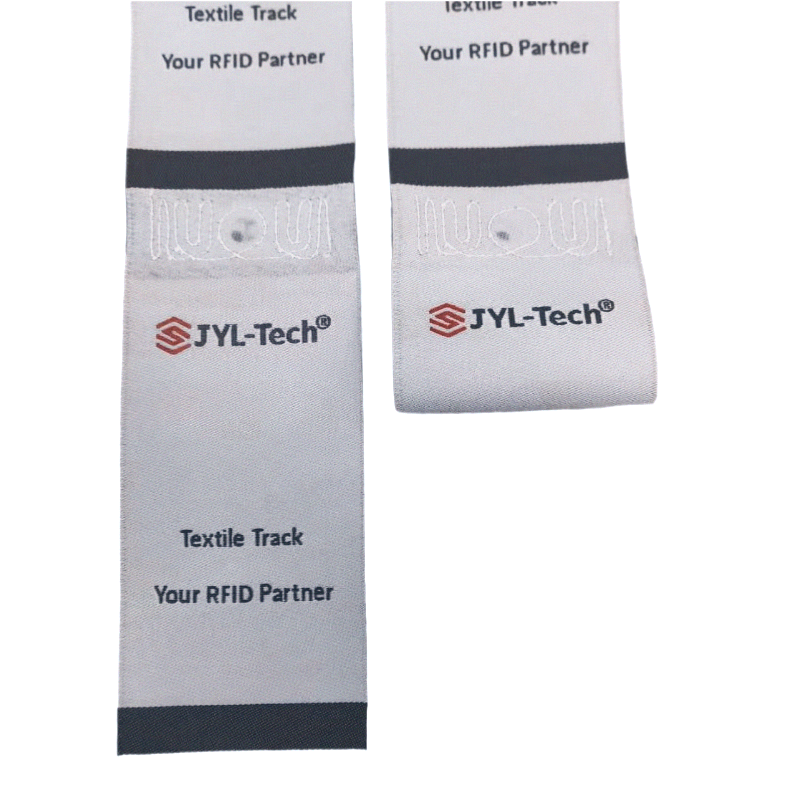

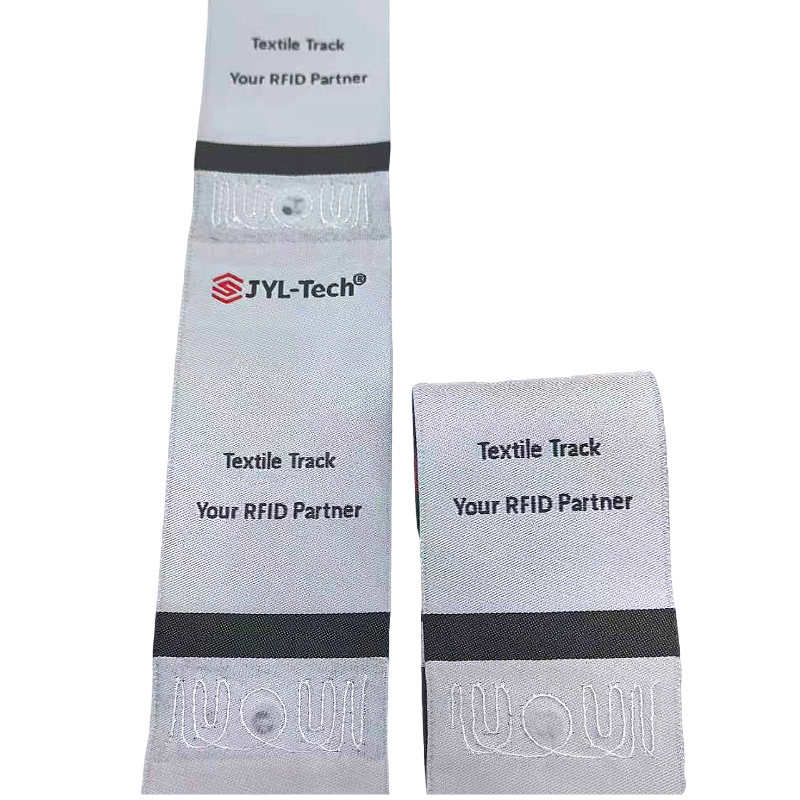

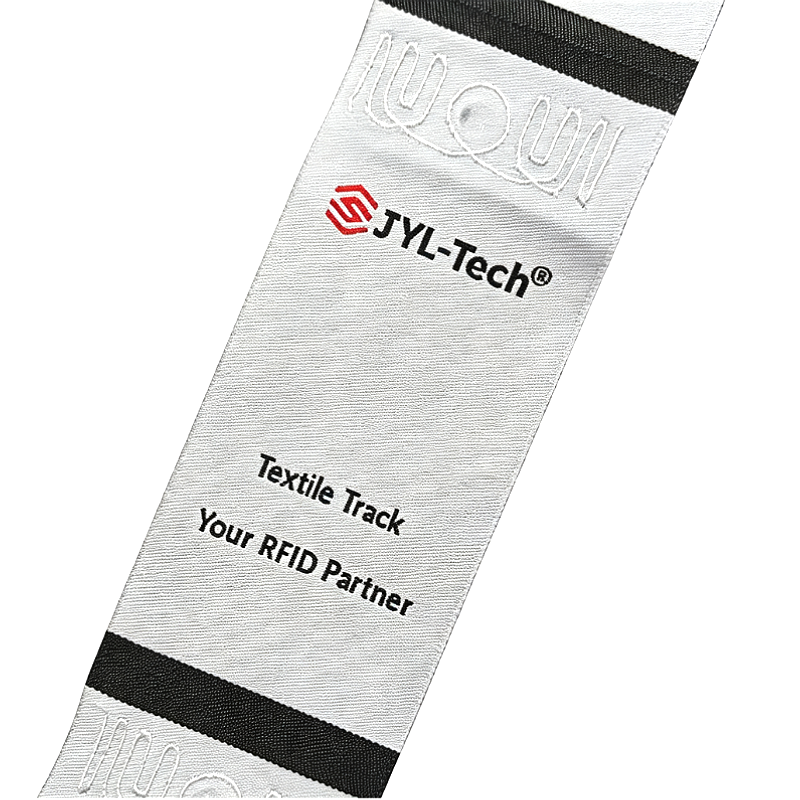

- Premium Woven Integration: The RFID chip and antenna are fully embedded within a soft, high-quality woven label. It preserves the premium look and feel of luxury textiles and ensures 100% skin-friendly comfort.
- Industrial Laundry Durability: Engineered to withstand over 200 industrial wash cycles. It features exceptional resistance to high temperatures (up to 90°C/120°C pressing), 60-bar extraction pressure, and harsh chemical detergents.
- Superior Bulk Scanning: Compliant with EPC Global Class 1 Gen 2 / ISO 18000-6C standards, allowing fast, automated inventory counts of thousands of stacked linens or garments in seconds from a distance of several meters.
- Seamless Application: Can be easily sewn onto the hem or seams of garments and linens, or integrated during the original textile manufacturing process as a permanent digital ID.
Applications:
- Hospitality & Resorts: Luxury bed sheets, plush towels, pillowcases, and bathrobes.
- Apparel & Fashion Retail: Brand authentication, anti-counterfeiting, and smart warehouse management.
- Uniform Management: Premium corporate wear, spa/salon uniforms, and hospitality staff apparel.
- Fine Dining & Catering: High-end tablecloths, napkins, and chair covers.
Benefits:
Intelligent Textile Tracking with Ultimate Comfort
Traditional RFID laundry tags can sometimes feel rigid or bulky when applied to fine dining linens, bathrobes, or employee uniforms. JYL-Tech’s Woven Label RFID Laundry Tag bridges the gap between high-performance asset tracking and everyday textile aesthetics. By clothing the RFID technology inside a standard woven garment label, businesses gain full supply chain visibility without compromising the luxury experience of their guests or the comfort of their staff.
Optimized for High-Volume Industrial Laundries
This woven RFID label is built for survival. Whether subjected to heavy-duty tumbling, automated sorting, or intense chemical disinfection in hospitality or healthcare facilities, the inner core module remains perfectly protected. It provides commercial laundries with continuous, accurate data, minimizing inventory loss, tracking precise wash cycle counts, and generating predictive insight into textile lifespans.
